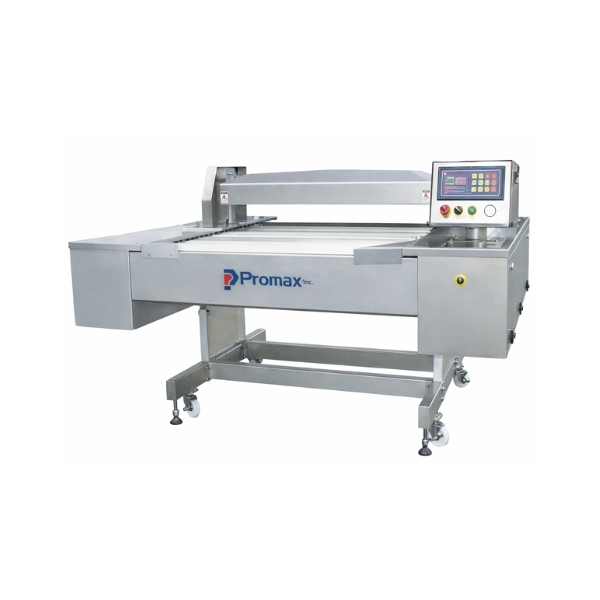

MODEL CV-1000 CONTINUOUS VACUUM PACKAGING MACHINE

MODEL CV-1000 CONTINUOUS VACUUM PACKAGING MACHINE

Standard Features:

  • Stainless Steel Construction
  • Stainless Steel Chain
  • PNC-01 Microprocessor Control
  • Water Cooling Seal Bar
  • Busch RA0100 (5HP) Vacuum Pump

Options:

  • Gas Flush System
  • Custom Seal Bar Configurations
  • Higher Capacity Vacuum Pump

Please note: Specifications are subject to change without notice



contactus_button

  • Description

Description



  • Stainless Steel Construction
  • Stainless Steel Chain
  • PNC-01 Microprocessor Control
  • Water Cooling Seal Bar
  • Busch Vacuum Pump

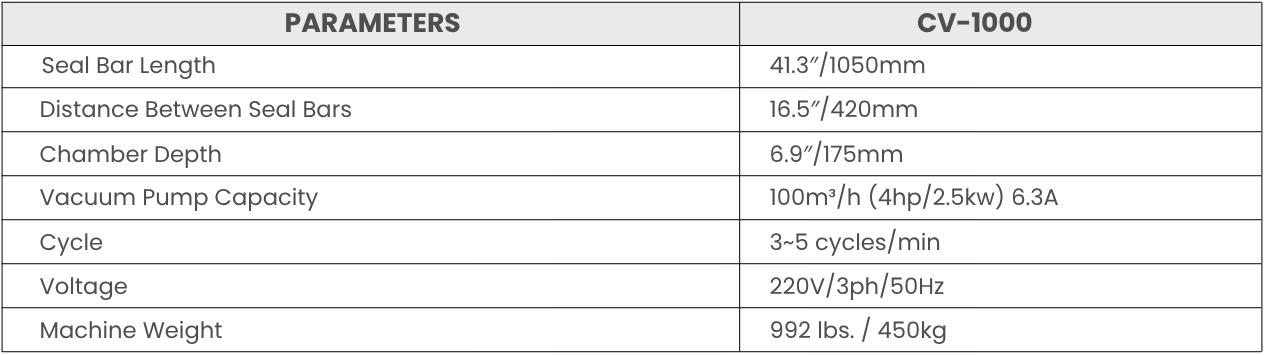

Specification:

Chamber Depth6.9/175mm
Distance Between Seal Bars16.5/420mm
Seal Bar Length41.3/1050mm
Vacuum Pump Capacity100m3/h (4hp/2.5kw)
Voltage220/3PH/60HZ/20AMP
Machine Weight992 lbs. / 450 kg
Cycle Time3 ~ 5 Cycles/Min
