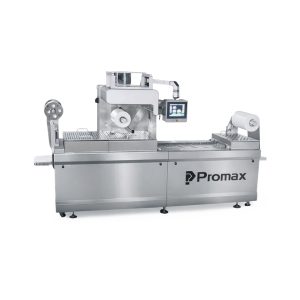

PRS-420 MINI – THERMOFORMING MACHINE

PRS-420 MINI – THERMOFORMING MACHINE

Promarksvac is one of the leading manufacturers of vacuum packaging and processing equipment in the world. We produce and deliver over 1,000 machines each year to over 50 countries. Reliability, durability, and comprehensive service makes our machines the best choice for your production line.



contactus_button

  • Description

Description

Specification:

Quick compressed air forming
Air cylinders for sealing
PLC/7” Touch screen control
Touch control panel, with user-friendly interface
Cross cut guillotine (1)
Rotating knives (1 set)
Servo motor for chain
5/8” Stainless steel conveyor chain
Motorized exit conveyor
Water cooled tooling
Dedicated top and bottom vacuum valves
Protection guard with electronic interlock system
Remote diagnostic
Trim Rewinder
Auto chain lubricating system
Busch 63m3/hr pump
Film core: Ø75mm
Top film width: 404(+1,-0)mm
Bottom film width: 422(+2,-0)mm
Film index: 240mm
3 loading stations
Max. forming depth: 80mm
Machine size: 2538 X 1087 X 1725mm
2 independent tool lifting stations
Easy changeover of sealing plates
Welded, stainless steel frame
Stainless steel loading area
Stainless steel adjustable legs
Photo cell for pre-printed film

Master die forming size: 224 X 382mm

Options:

Film index 300mm with 2 loading stations
Perimeter sealing
Vacuum pump sizes
Printing system
Gas injection system (MAP)
Water cooling chiller
Booster pump
Multiple supply voltage
※Products need to be qualified before suggesting machines and options.

Air, power, and cooling water requirement:

Compressed air: 95 PSI @ 45L per cycle*
Cooling water: 9600 BTU/HR, 30L/min @40 psi (2.8kg/cm2)
Power: 220V/3PH/60HZ/35A
