Description

Specification:

Quick compressed air forming
Air cylinders for sealing
Touch control panel, with user-friendly interface
Cross cut guillotine (1)
Rotating knives (1 set)
Servo motor for chain
5/8” Stainless steel conveyor chain
Roller discharge conveyor
Water cooled tooling
Dedicated top and bottom vacuum valves
Protection guard with electronic interlock system
Remote Diagnostic
Trim Rewinder
Busch 63m3/hr pump
Film core: Ø75mm
Top film width: 301(+1,-0)mm
Bottom film width: 324(+2,-0)mm

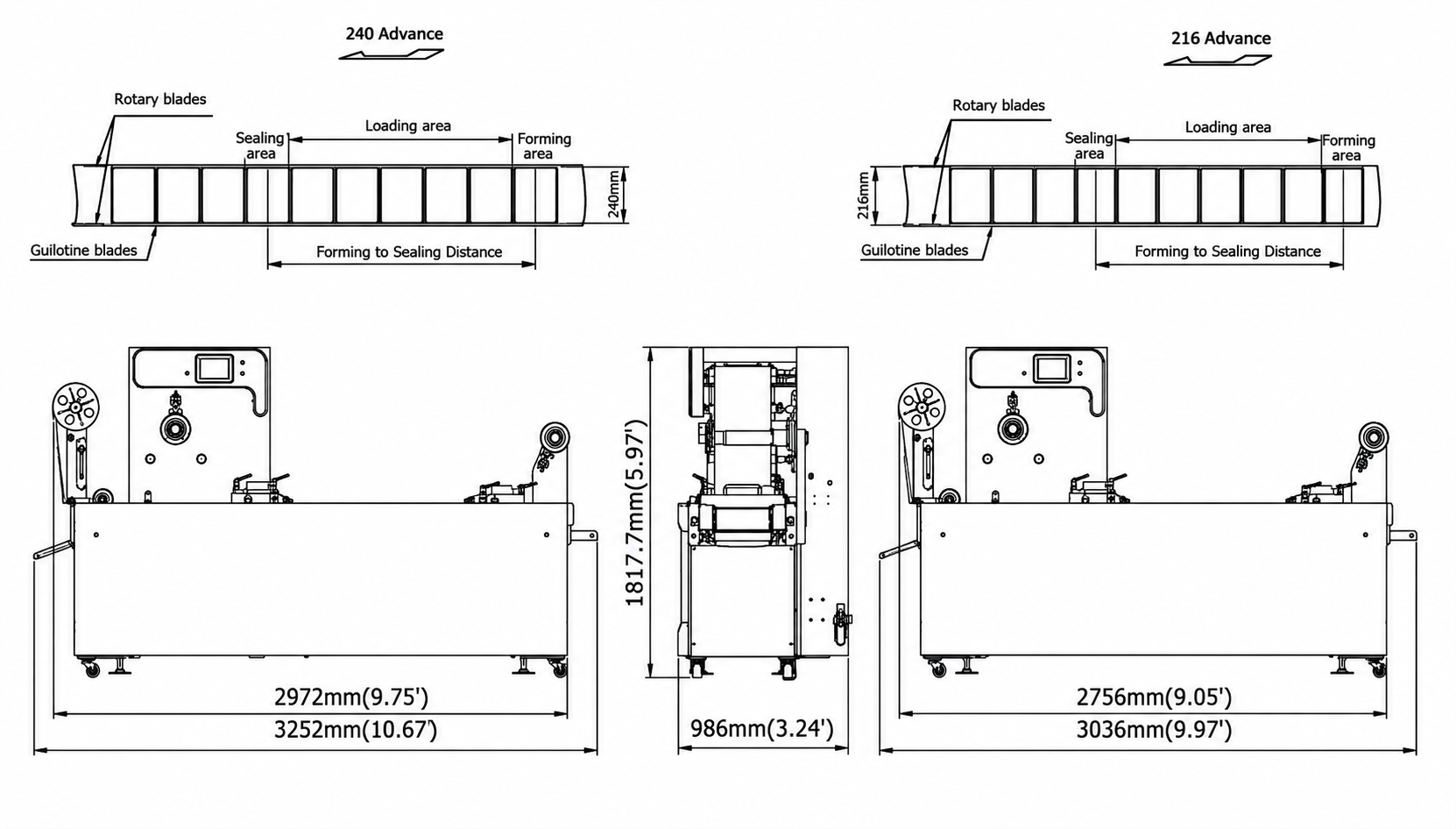

Film index: 216mm
5 loading stations
Max. forming depth: 80mm
Auto chain lubricating system
2 independent tool lifting stations
Easy changeover of sealing plates
Welded, stainless steel frame
Stainless steel loading area
Stainless steel adjustable legs
Heated Electrical Panel

Options:

Die Set
Vacuum pump sizes
Film Index 240 mm
Extra cross cut guillotine
Printing System
Perimeter sealing
Motorized exit conveyor
Water cooling chiller
Gas Injection System
Photo cell for pre-printed film
Loading Grill

Product Support Rails
Spare Parts Kit
PLC/12” Touch Screen Control with Swing arm

※Products need to be qualified before suggesting machines and options.

Air, power, and cooling water requirement:

Compressed air: 100 PSI,  Air Hose needs to be more than 3/4”
Cooling water: 9600 BTU/HR, 2L/min @40 psi (minimum requirement)
Power: 220V/3PH/60HZ/40A
