BT-800 BELT TYPE VACUUM PACKAGING

BT-800 BELT TYPE VACUUM PACKAGING

Standard Features:

  • Stainless Steel Construction for Dependability and Durability
  • Busch Vacuum RA0305 (12HP) Vacuum Pump
  • Touchscreen Controls for Ease of Operation
  • Lid Safety Ring Protects You During Operation
  • Liquid Cooled Seal Bars Reduce Seal Wire Failure
  • Pivoting Control Arm to Handle a Variety of Tasks
  • In feed and Exit Conveyor Speed Up Handling
  • Casters and Leveling Legs for a Perfect Fit Anywhere

Options:

  • Perforation Knife System
  • Bi-Active Seal System
  • Booster Vacuum Pump
  • Custom Conveyor System

Please note: Specifications are subject to change without notice



contactus_button

  • Description

Description

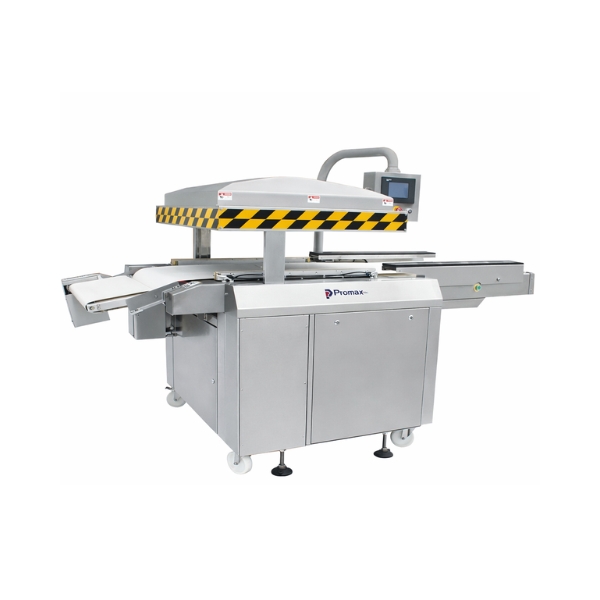

The BT series is an inline system for those customers who require high output vacuum chamber packaging. These machines can be paired with our belted ST700 series of dip tanks to create the perfect high speed packaging solution for any customer.

In order to meet output demands we have built these machines for performance and reliability. Deep levels of vacuum are quickly pulled by means of high capacity Busch USA vacuum pumps that come standard with the BT8001100; optional upgrades are available for customers who need more power. Equipped with easy-to-use touchscreen controls for maximum adjust ability, our machines can be set up to achieve desired results. The water-cooled seal bars dramatically reduce seal wire failure; this in turn will cut down on costly down time. Built for high speed and reliability, Promarks is ready to meet your vacuum packaging needs.

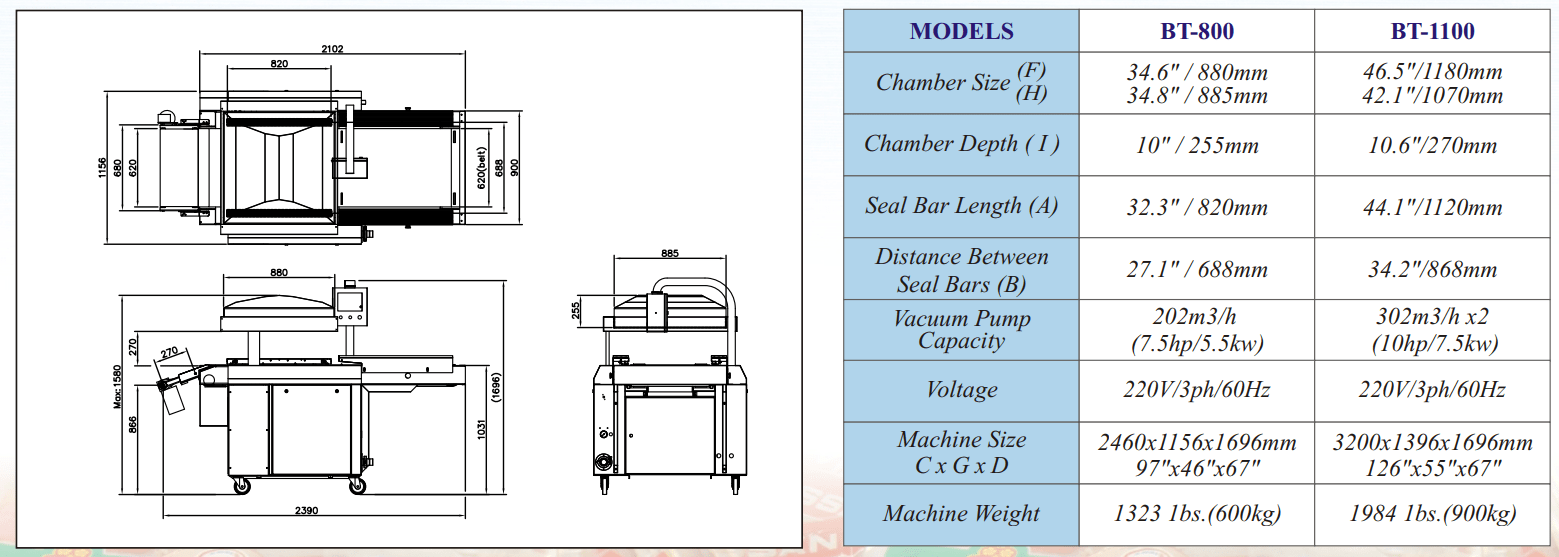

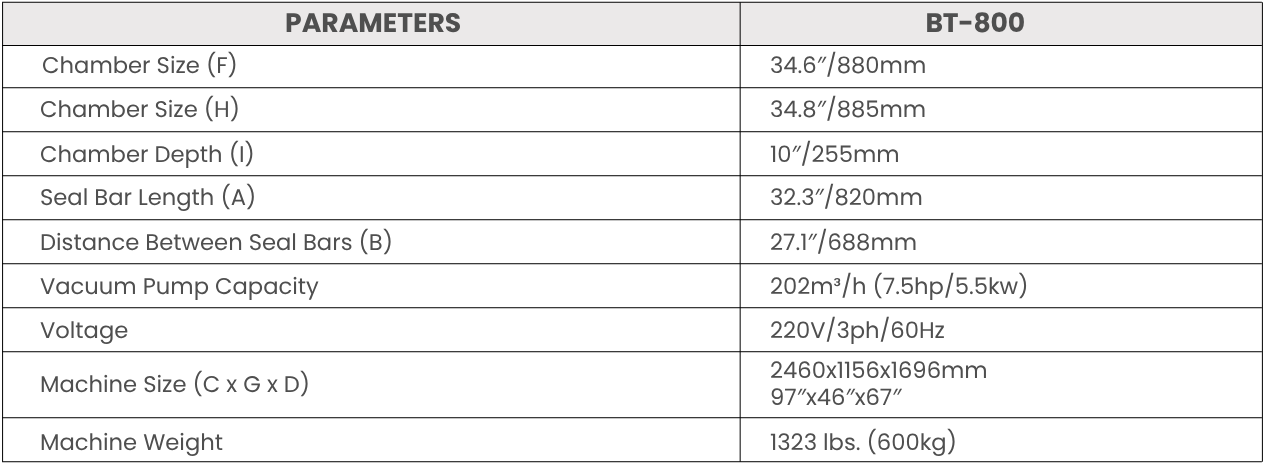

Specification:

Chamber Size34.6 x 34.8 (880x885mm)
Chamber Depth10/255mm
Distance Between Seal Bars27.1/688mm
Seal Bar Length32.3/820mm x 2
Vacuum Pump Capacity305m3/h (12hp/9.8kw)
Voltage220V/3PH/60HZ/35AMP
Machine Weight1320 lbs. / 600 kg
Machine Size - L x W x H97 x 46 x 67 (2460 x 1156 x 1696 mm)
