RS-455 THERMOFORMING PACKAGING MACHINE

RS-455 THERMOFORMING PACKAGING MACHINE

Standard Features:

  • Stainless steel frame
  • Stainless steel loading area
  • Hinged dies for fast die change
  • All stainless steel chain with Delrin chain guides
  • PLC / HMI control system with large 10″ screen
  • Quick compressed air foorming
  • Servo drive film transport chain
  • Mechanical die lifting stations with air rams
  • Busch RA063 vacuum pump
  • Digital vacuum monitoring for fast troubleshooting and calibration for medical packaging
  • Vacuum calibration ports for audits and medical packaging

Please note: Specifications are subject to change without notice



contactus_button

  • Description

Description

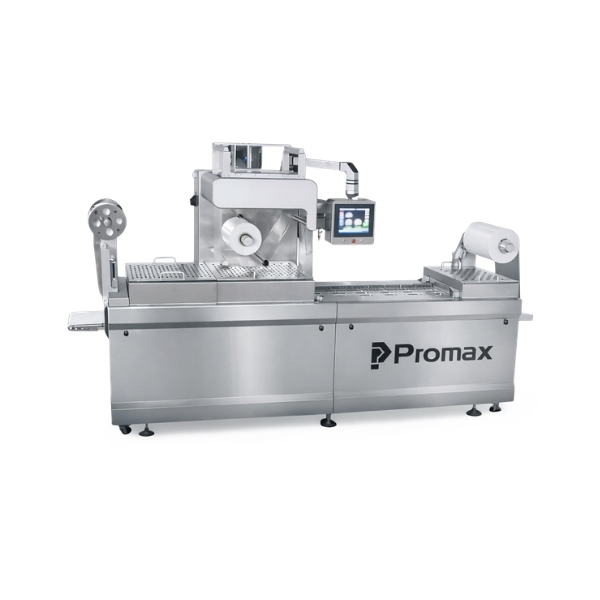

Promarksvac’c model RS-455 thermoforming packaging machine offers an indexing range from 320mm to 540mm and web widths up to 520mm. It can process both flexible and semi-rigid fill with thickness up to 14mil and can provide forming depths up to 120mm. Most of our standard features are options on competitive machines.

The RS-455 can accommodate a wide range of products from liquids and powders to marinated and whole muscle product as well as non-food products. With a wide range of available option the RS-455 can be configured for fully validate able operation for packaging medical and pharmaceutical products.

Specification:

OUTPUT6 - 10 Cycles / Minute
COMPRESSED AIR SUPPLY 5 CFM / 120 PSI
PACKAGING SHAPERectangler
FORMING FILM WIDTH320MM - 520MM
CUT OFF LENGTHMax. 520MM
FORMING SYSTEM Vacuum Generator
POWER SUPPLY220V/3PH/60HZ
COOLING WATER SUPPLY.25 GPM
FORMING FILM TYPEFlexible / Rigid to 0.3mm
FORMING DEPTHMax. 120mm
DIE CHANGE METHODManual
LOADING AREA2 X Cut off (1 Ful and 2 halves)
