ST-10 Shrink Tank
Standard Features:
- Stainless Steel Construction
- Efficient Electric Heating
- Programmable Temperature Control
- Simple Push Button Cycle Operation
- Low Water Shut-Off Protection and Warning Light
- Easy Access for Cleaning and Maintenance
- High Efficiency Insulation for Heat Retention
- Easy Fill and Drain Tank
Note – Power Requirements:
- 230/60Hz, 3-phase
- 50 Amp
Options:
- Custom Voltage
Please note: Specifications are subject to change without notice
Shrink/Dip Tanks - Inquiry Form
- Description
Description

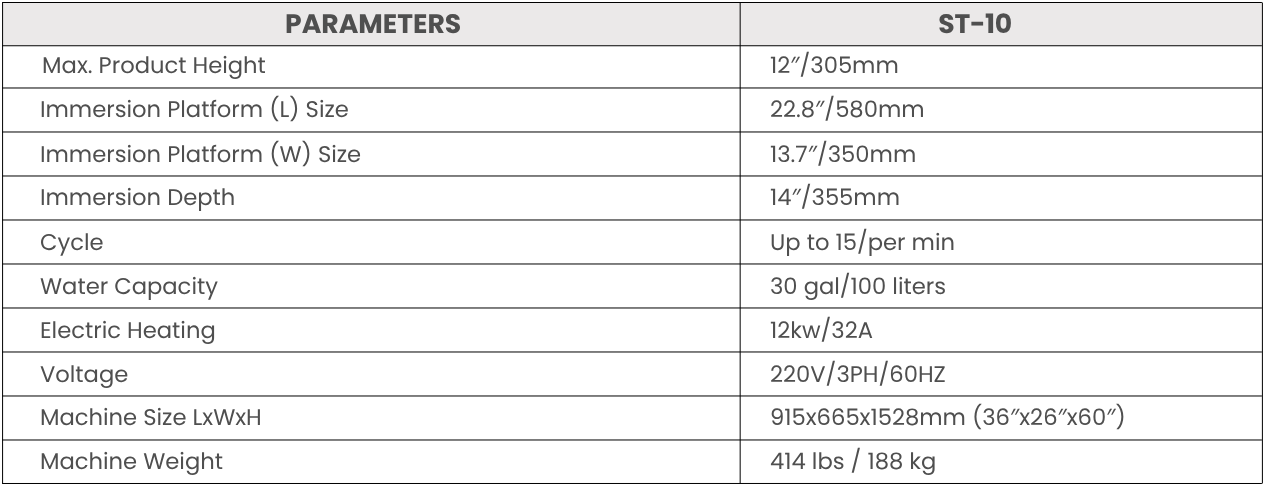

Specification:
| MODELS | ST-10 |
|---|---|
| Max. Product Height | 12″/305mm |
| Immersion Platform (L) Size | 22.8″/580mm |
| Immersion Platform (W) Size | 13.7″/350mm |
| Immersion Depth | 14″/355mm |
| Cycle | Up to 15/per min |
| Water Capacity | 30 gal/100 liters |
| Electric Heating | 12kw/32A |
| Voltage | 220V/3PH/60HZ |
| Machine Size LxWxH | 915x665x1528mm (36″x26″x60″) |
| Machine Weight | 414 lbs / 188 kg |
Our compact ST-10 is a semi-automatic shrink dip tank. Used in conjunction with a vacuum chamber machine and shrink bags, this machine is ideal for small to medium-sized operations. By means of hot water submersion, the shrinking process is performed with the simple push of a button. Switch into automatic mode and our machines will cycle on their own with a preset delay to allow time for loading. An easy-to-use temperature control and timer provides trouble-free operation. Quality is evident in the robust construction of our machines which are built with a stainless steel frame and body. Promarks puts our best into every machine we make, including the ST-10.
