VT-570 MAP TRAY SEALING

VT-570 MAP TRAY SEALING

Standard Features:

  • Heavy Gauge Stainless Steel Construction
  • Semi-Automatic Operation
  • Automatic Film Advance and Cutting System
  • PNC-01 Microprocessor Control Panel with 14 Programs and IP56 Water Resistant
  • Printed Film Registration System
  • Busch Vacuum Pump
  • Internal Gas Holding Tank
  • Auto Tray Lift System for Easy Removal
  • Film Tensioner

Options:

  • Single Phase Vacuum Pump up to 100m3/h(5HP)
  • Extra Die Sets
  • Custom Voltage

Please note: Specifications are subject to change without notice



contactus_button

  • Description

Description

The Promarks VT400 and VT570 are modified atmosphere tray sealers that are designed for small- to medium-sized operations. By pulling a vacuum and inserting a pure gas mixture, the optimal shelf life can be reached for a wide range of products. Capable of accepting a variety of trays of all shapes and sizes, our machines can be built for your specific tray and film configurations. Vacuum, gas, and seal times can all be easily adjusted via the fully programmable digital control board. For added reliability we only use Busch USA vacuum pumps on all of our modified atmosphere tray sealers.

Features:

  • Heavy Gauge Stainless Steel Construction
  • Semi-Automatic Operation
  • Automatic Film Advance and Cutting System
  • Programmable Water Resistant Control Panel (IP56)
  • Printed Film Registration System
  • Busch Vacuum Pump
  • Internal Gas Holding Tank
  • Auto Tray Lift System for Easy Removal
  • Film Tensioner

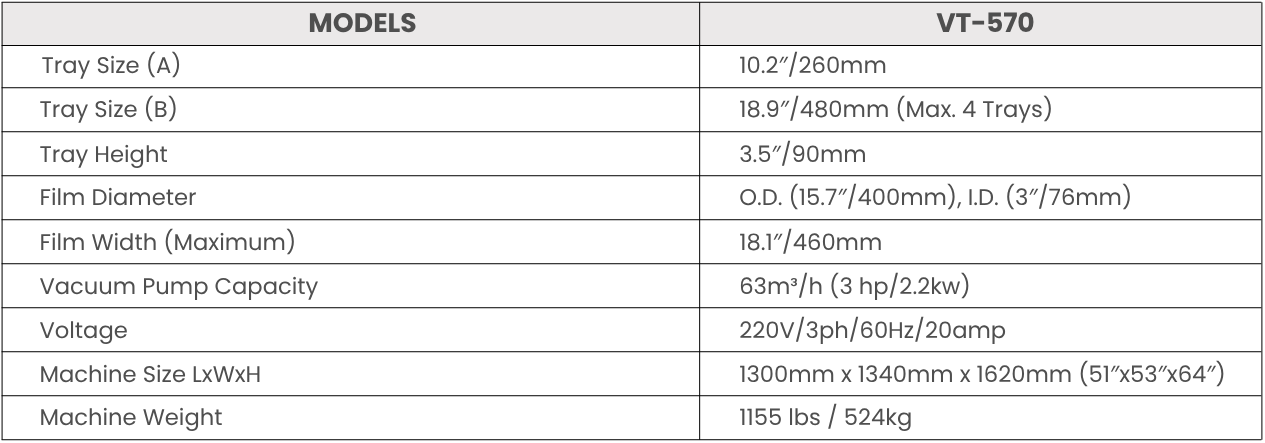

Specification:

Vacuum Pump Capacity63m3/h(3hp/2.2kw)
Voltage220V/3PH/60HZ/20AMP
Machine Weight1155 lbs. / 524 kg
Tray Size (Max. 4 Trays)10.2 x 18.9 (260x480mm)
Tray Height3.5/90mm
Film Diameter (Maximum)OD 15.7/400mm ID 3/76mm
Film Web (Maximum)18.1/460mm
Machine Size - L x W x H51 x 53 x 64 (1300 x 1340 x 1620 mm)
