VT-400 MAP Tray Sealing

Name: Promarks Reviews
Brand: Promarksvac Corp.
Rating: 4.9 (950 reviews)

Please note: Specifications are subject to change without notice

Categories: MAP Tray Sealing Machine, Vacuum Packaging Equipment

Description
FAQs – Promarks VT-400 Tray Sealer Machine

Description

Dedicated

Customer Sales
Support

Stock

Ready-to-Ship
Inventory

Speedy

Nationwide
Fast Delivery

Free Help

Expert Technical
Support

Secure

Multiple
Payments

Standard Features – MAP Tray Sealer:

Heavy Gauge Stainless Steel Construction
Semi-Automatic Operation
Automatic Film Advance and Cutting System
PNC-01 Microprocessor Control Panel with 14 Programs and IP56 Water Resistant
Printed Film Registration System
Busch Vacuum Pump
Internal Gas Holding Tank
Auto Tray Lift System for Easy Removal
Film Tensioner

Options:

Single Phase Vacuum Pump up to 100m3/h(5HP)
Extra Die Sets
Custom Voltage

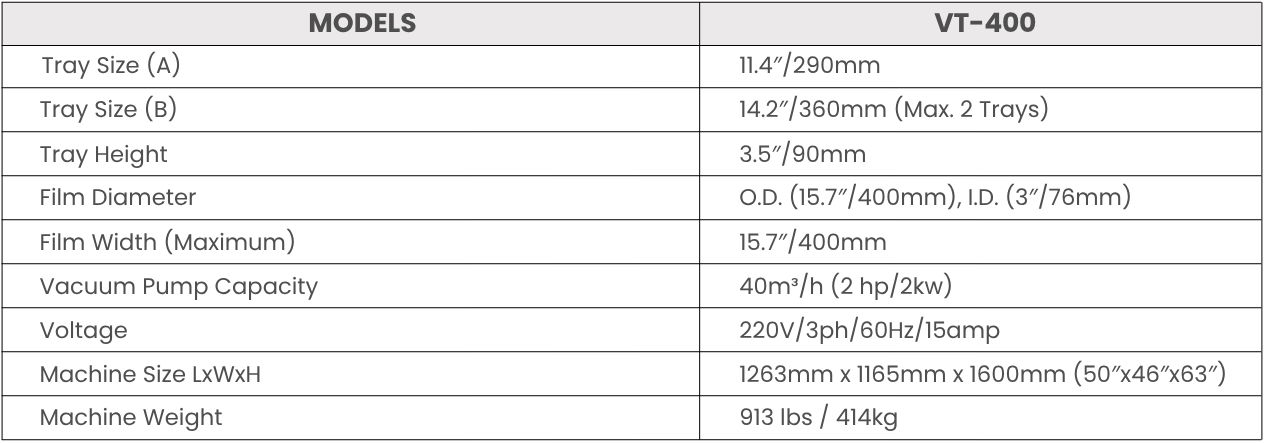

Specification:

MODELS	VT-400
Tray Size (A)	11.4″/290mm
Tray Size (B)	14.2″/360mm (Max. 2 Trays)
Tray Height	3.5″/90mm
Film Diameter	O.D. (15.7″/400mm), I.D. (3″/76mm)
Film Width (Maximum)	15.7″/400mm
Vacuum Pump Capacity	40m³/h (2 hp/2kw)
Voltage	220V/3ph/60Hz/15amp
Machine Size LxWxH	1263mm x 1165mm x 1600mm (50″x46″x63″)
Machine Weight	913 lbs / 414kg

Drawing – VT400 – MAP Tray Sealer

The Promarks VT400 and VT570 are modified atmosphere tray sealers that are designed for small – to medium-sized operations. By pulling a vacuum and inserting a pure gas mixture, the optimal shelf life can be reached for a wide range of products. Capable of accepting a variety of trays of all shapes and sizes, our machines can be built for your specific tray and film configurations. Vacuum, gas, and seal times can all be easily adjusted via the fully programmable digital control board. For added reliability, we only use Busch USA vacuum pumps on all of our modified atmosphere tray sealers.

Tell Us What You Need – Get a Fast Quote

Tray Sealer & MAP Machine - Inquiry Form

Phone

This field is for validation purposes and should be left unchanged.

Name*

First Last

Email*

Your Phone No.*

Machine Type/Model*

Your Country*

Your Message*

Please let us know what's on your mind. Have a question for us? Ask away.

Installation & Setup

What are the electrical requirements of the VT-400 tray sealer?
The machine requires 220V, 50/60Hz power supply.

What air pressure is needed for operation?
Compressed air requirement is 0.6 – 0.7 MPa with a stable supply.

What is the air consumption per cycle?
Approximately 3.3 liters per cycle.

What tray size can the machine handle?
Maximum tray size is 380 × 300 × 100 mm.

What should be checked during installation?

Proper power connection
Correct grounding
Air compressor connection
Film alignment
Pump rotation direction

Operation & Working

What packaging modes does the VT-400 support?

Traditional sealing only
Vacuum packaging (optional)
Modified Atmosphere Packaging (MAP / gas flushing)

How does the sealing process work?
The machine lowers the mold, clamps the film, seals it using a heated plate, cuts excess film, and completes the cycle automatically.

What is the sealing temperature range?
Recommended sealing plate temperature is 120°C – 180°C.

What happens during vacuum packaging mode?
Air is removed from the chamber, then sealing is performed, and finally air/gas is restored to normalize pressure.

What is gas flushing used for?
Gas flushing replaces oxygen with protective gas to extend product shelf life.

Control Panel & Settings

What does the LED control panel do?
It controls vacuum, gas, sealing time, cooling, and cycle programming steps.

What are the main process steps in the cycle?

Vacuum (VAC)
Gas (GAS)
Seal 1 (SEAL1)
Seal 2 (SEAL2)
Cooling (COOL)
Soft air release (SOFT)

What is the function of “SOFT AIR”?
It slowly releases pressure to prevent film damage and improve appearance.

Can I adjust vacuum level?
Yes, vacuum can be set from 0% to 99% or by time-based control.

What is “PURGE” function?
It combines vacuum and gas flushing cycles for improved packaging results.

Film & Packaging

How is film inserted into the machine?

Place reel on shaft
Guide film under sealing station
Align properly
Fix scrap film to rewinding shaft
Ensure sealing side faces tray

What happens to excess film after sealing?
It is automatically cut and wound onto the scrap roller shaft.

What type of trays can be used?
Aluminum, PVC, APET, CPET, PP, and laminated paper trays.

Why is film alignment important?
Incorrect alignment can cause poor sealing or film wrinkling.

Performance & Capacity

What is the production capacity of the VT-400?
Approximately 500–600 cycles per hour.

Is the machine automatic or semi-automatic?
It is a semi-automatic tray sealing machine.

Safety & Warnings

What safety precautions should be followed?

Do not operate under alcohol/drug influence
Ensure proper grounding
Avoid touching hot sealing areas
Do not use metal objects near working area
Only trained operators should run the machine

Why is grounding important?
Improper grounding can cause electrical hazards and damage.

Can two operators use the machine at the same time?
No, simultaneous operation by two operators is strictly not allowed.

Troubleshooting

Why is vacuum not reaching proper level?
Possible reasons:

Air leakage
Incorrect settings
High altitude/air pressure conditions

What to do if sealing is weak?
Check:

Temperature (120–180°C range)
Sealing time settings
Film compatibility

Why does the machine not start cycle?
Check:

Power supply connection
Air pressure
Control panel status (standby or ON mode)

Maintenance

Can maintenance be done immediately after operation?
No, wait for cooling before performing maintenance.

What happens if machine is modified?
Unauthorized modification may void warranty and cause malfunction.

Advanced Functions

What is “Group Selection” in settings?
It allows saving and selecting up to 24 preset packaging programs.

What is “STEP Selection”?
It lets you adjust individual parameters like VAC, GAS, SEAL time, and COOL time.

What is pulse gas flushing?
It alternates gas ON/OFF cycles to improve packaging atmosphere control.
