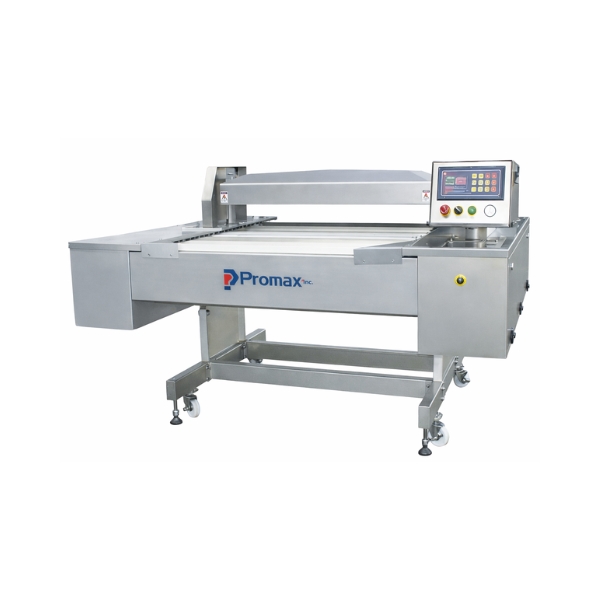

CV-1200 CONTINUOUS VACUUM PACKAGING MACHINE

contactus_button

Standard Features:

  • Stainless Steel Construction
  • Stainless Steel Chain
  • PNC-01 Microprocessor Control
  • Water Cooling Seal Bar
  • Busch RA0305 (12HP) Vacuum Pump

Options:

  • Gas Flush System
  • Custom Seal Bar Configurations

Please note: Specifications are subject to change without notice

Continuous Type Vacuum Chamber - Inquiry Form

Name*
Please let us know what's on your mind. Have a question for us? Ask away.
This field is for validation purposes and should be left unchanged.

Description

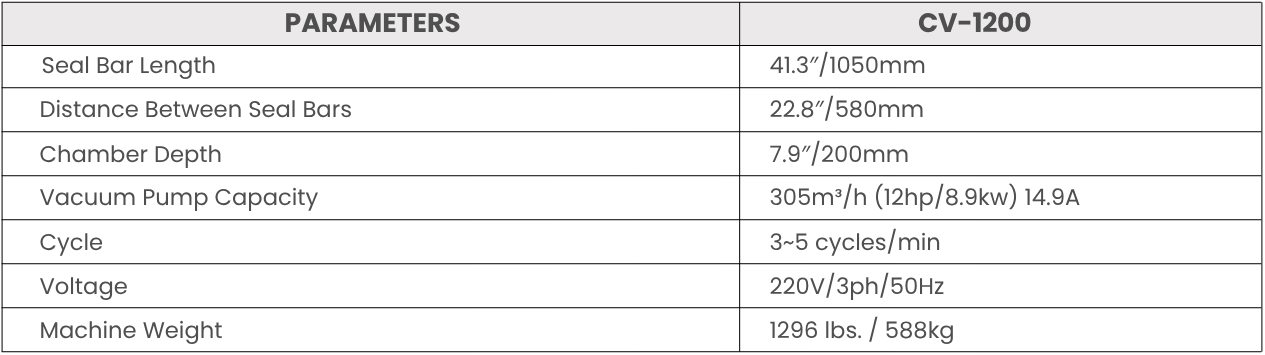

Specification:

MODELS CV-1200
Seal Bar Length 41.3″/1050mm
Distance Between Seal Bars 22.8″/580mm
Chamber Depth 7.9″/200mm
Vacuum Pump Capacity 305m³/h (12hp/8.9kw) 14.9A
Cycle 3~5 cycles/min
Voltage 220V/3ph/50Hz
Machine Weight 1296 lbs. / 588kg
