Description

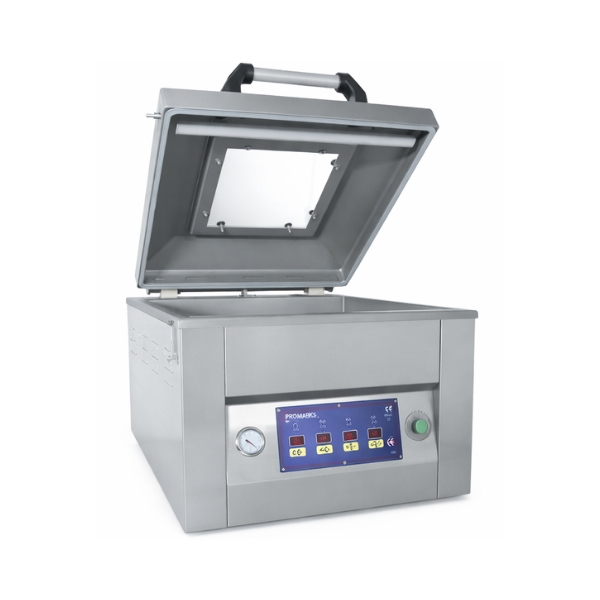

Promarksvac’s model TC-520F is one of our most popular table top vacuum chamber sealer models. The “F” in the model number lets you know that this machine features a single 21” seal bar in the front of the vacuum cavity area. Like all Promarksvac chamber vacuum sealers this machine is ETL tested, certified and labeled as meeting UL and CSA safety standards for packaging equipment as well as NSF sanitary standards. This rugged functional machine utilizes an all # 304 stainless steel housing, lid, with a viewing port, and vacuum cavity. It features a Busch (model RB0021) vacuum pump for reliable and powerful vacuum performance. The standard PD-01 basic digital control panel allows the operator to quickly set the parameters for vacuum time, gas flush time (with optional gas flush system), seal time and cooling time with the accuracy of a digital readout. If your application requires more advanced control then the optional PNC-01 microprocessor based control panel may be just what you need. The PNC-01 allows for the vacuum to be controlled via time or vacuum pressure and also includes a 14 recipe memory, soft air venting as well as multi-stage gas flush capability just to name a few of the control options it offers the operator. This model comes standard with filler plates that help place the package being sealed at the proper height as well as cut down the cycle time for small packages by forcing excess air out of the vacuum cavity. An optional slant tray can replace the filler boards if you are working with a product that will have liquid inside the package. Other options such as a gas flush system, bi-active seal system and 220V/1PH power allow the TC-420F to handle a wide variety of applications. The model TC-520F is also the smallest table top unit available with the optional “PreciseSeal” fully validatable PLC/HMI based control system.

Promarksvac has sold TC-520F machines for the following applications:

• Sous Vide
• Pharmaceutical Lab applications
• Test kitchens
• Electronic dry pack applications
• Pet food packaging
• Markets & Delis
• Many more

Call us today to arrange for a vacuum sealed sample of your product!

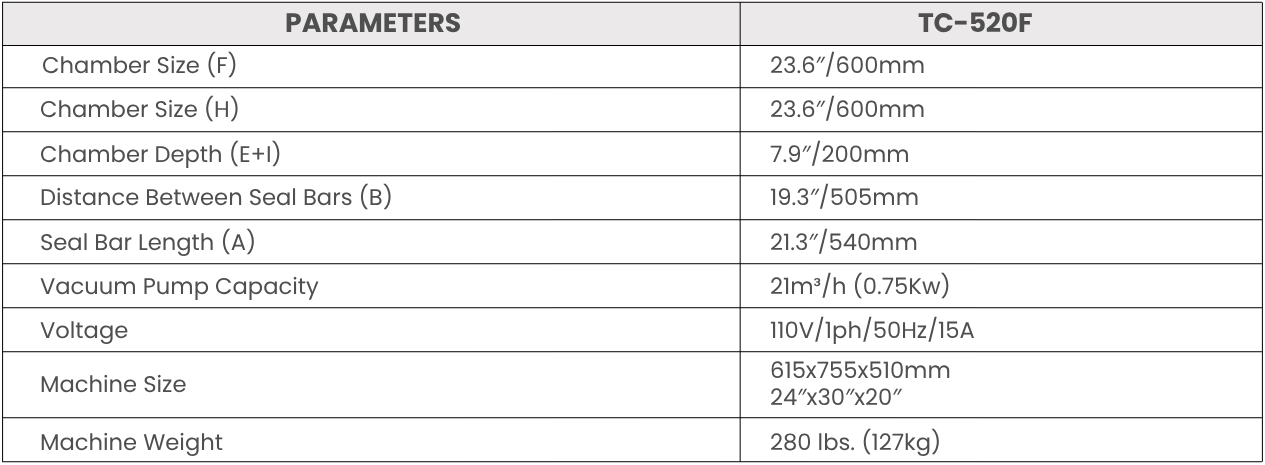

Specification:

Our Table-Top Vacuum Chamber Sealer Packaging Machine combines power and precision in a compact, commercial-grade design. Built from durable Stainless Steel Construction, this vacuum sealer offers lasting performance and ease of use, making it ideal for a range of applications from food packaging to small-scale commercial operations.

Powered by the reliable Busch Vacuum Pump RB0021 (1.25HP), this Table-Top Vacuum Chamber Sealer guarantees strong, consistent suction for effective packaging every time. The PD-01 Basic Digital Control Panel provides user-friendly controls, simplifying setup and operation. Featuring a Clear View Stainless Steel Lid with a transparent viewport, operators can easily monitor the sealing process, ensuring optimal results.

This Commercial Table-Top Vacuum Sealer is equipped with Bladder Activated Sealing and Air Assist Sealing as standard features, delivering tight, professional-grade seals on every pack. With either a 6mm Seal Wire or Electric Cut-Off Seal Bar, this machine caters to various packaging needs, adding flexibility for users in food service, retail, or specialty packaging. Its compliance with UL, CSA & NSF certification standards further attests to its quality and safety for professional use.

Optional upgrades include the PNC-01 Microprocessor Control for enhanced precision, a Gas Flush System to add inert gas for extended product freshness, and Twin Beam Sealing for extra secure sealing. Users can also choose a Bi-Active Seal for difficult or thick packaging materials, along with Soft Air for gentle packaging of delicate items.

For power adaptability, the machine offers a 220V Single Phase option, accommodating various setups. This Table-Top Chamber Vacuum Sealer is the ultimate solution for businesses needing a Compact Vacuum Packaging Machine with Air Assist and customizable features to meet specific packaging demands.

Whether for high-quality food preservation or delicate commercial packaging, our NSF Certified Table-Top Vacuum Chamber Sealer is engineered to enhance efficiency, ensuring a reliable, premium packaging experience in every use. Contact us today to find out how this machine can be tailored to your unique needs.
