MODEL TM1000M-5000M VACUUM MASSAGER MACHINE

MODEL TM1000M-5000M VACUUM MASSAGER MACHINE

Standard Features:

  • Stainless Steel Construction
  • BUSCH Vacuum Pump
  • Variable Speed
  • Continuous Vacuum
  • Reverse Discharge Function
  • PV-03 Microprocessor Control Panel

Options:

  • PLC / HMI Control System
  • Larger Vacuum Pumps
  • Load Cells
  • Buggy Dumper Systems
  • Suction Tables
  • Load /Unload Conveyor Systems
  • Custom Voltage



contactus_button

  • Description

Description





Promarks’ TM Series massagers are the machines you want when your operation is ready for the big time. With capacities ranging from 1000lbs to over 5000lbs these are units made for medium to high volume processors and many times they are used in a direct line form with our MSK Series brine injectors.  These machines utilize a continuous vacuum system and offer a wide range of options such as load cells, buggy dumper systems and suction fill systems just to name a few. The bottom line is that these machines can be configured to handle your specific processing needs. If you are looking for a line of vacuum massagers that have the quality, performance and features that make them the best value in the industry look no further than Promarks’ TM Series vacuum massager line of machines.

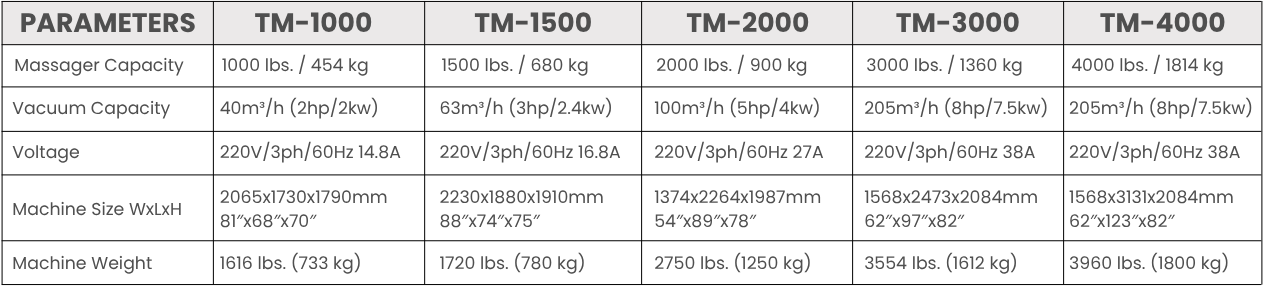

Specification:

TM-1000M:

Capacity1000 lbs./ 454 kg
Vacuum Pump Capacity40m3/h (2hp/2kw)
Voltage220V/3PH/60HZ/14.8A
Machine Weight1616 lbs. / 733 kg
Machine Size - L x W x H81" x 37" x 70" (2065 x 1730 x 1790 mm)

TM-1500M:

Capacity1500 lbs./ 680 kg
Vacuum Pump Capacity63m3/h (3hp/2.4kw)
Voltage220V/3PH/60HZ/16.8A
Machine Weight1720 lbs. / 780 kg
Machine Size - L x W x H88" x 74" x 75" (2230 x 1880 x 1910 mm)

TM-2000M:

Capacity2000 lbs./ 900 kg
Vacuum Pump Capacity100m3/h (5hp/4kw)
Voltage220V/3PH/60HZ/27A
Machine Weight2750 lbs. / 1250 kg
Machine Size - L x W x H89" x 54" x 78" (2264 x 1374 x 1987 mm)

TM-3000M:

Capacity3000 lbs./ 1360 kg
Vacuum Pump Capacity205m3/h (8hp/7.5kw)
Voltage220V/3PH/60HZ/38A
Machine Weight3354 lbs. / 1612 kg
Machine Size - L x W x H97" x 62" x 82" (2473 x 1568 x 2084 mm)

TM-4000M:

Capacity4000 lbs./ 1814 kg
Vacuum Pump Capacity205m3/h (8hp/7.5kw)
Voltage220V/3PH/60HZ/38A
Machine Weight3960 lbs. / 1800 kg
Machine Size - L x W x H123" x 54" x 82" (3131 x 1568 x 2084 mm)
