BRINE INJECTOR MSK-32/56

BRINE INJECTOR MSK-32/56

Standard Features:

  • Stainless Steel (# 304) Construction
  • Centrifugal Brine Pump
  • Stainless Steel (# 304) Brine Tank
  • Brine Mixer (model MSK-56)
  • PLC / HMI Control System
  • Variable Speed Motor Drive up to 50 Strokes per Minute
  • Air Head Design for Needle Force
  • Walking Beam System for Product Movement
  • Unique Needle Cleaning System
  • Digital Brine Temperature Readout

Options:

  • Custom Voltage



contactus_button

  • Description

Description

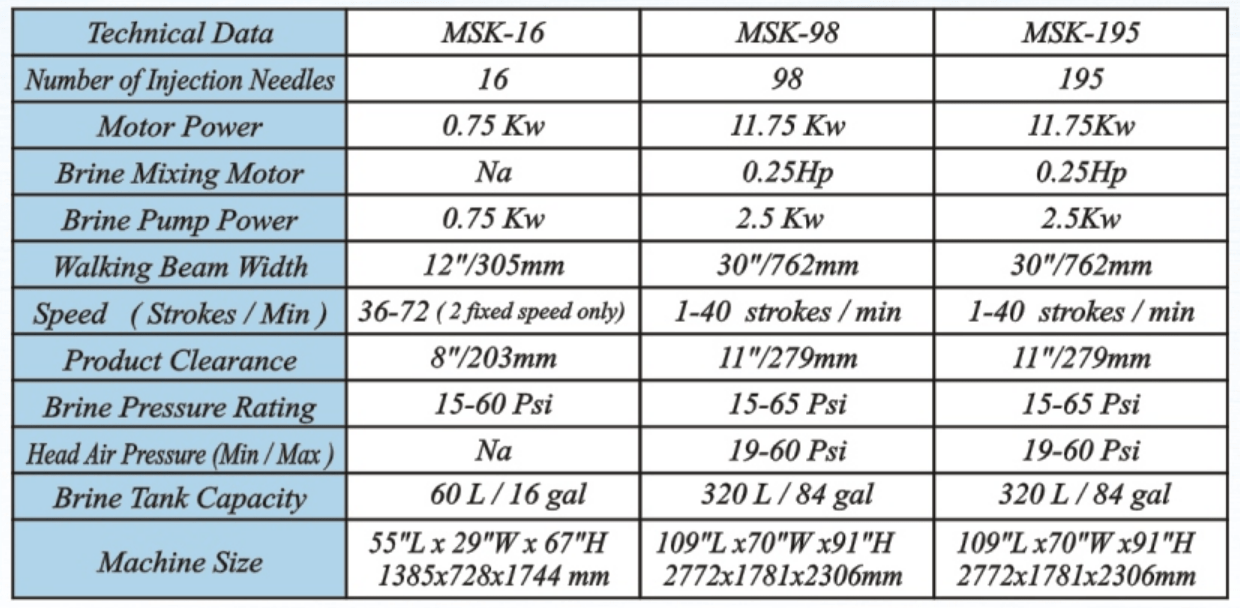

Promarksvac Corporation manufactures a complete line of Brine Injectors from our value priced MSK-16 to our impressive MSK-198. All of these units feature all stainless steel housings and high quality European brine pumps.

The MSK-16 features simple to use analog controls and a composite conveyor belt for product movement. The needle force on this unit is supplied by a time tested spring system.

The MSK-32 through the MSK-56 offers an advanced PLC control system as well as a sturdy all stainless steel walking beam system for product movement through the unit. These units also feature an air pressure controlled needle head system. This system allows for processing both boneless as well as bone in product with a simple adjustment in the air pressure settings, instead of changing out head springs. These units also feature unique air powered needle cleaning fixture.

The MSK-98 and the MSK-198 boast a robust hydraulic power system that handles both needle head movement as well as driving the product feed conveyor. These units share the same advanced PLC control system and needle cleaning fixture as the MSK-32 and MSK-56

If your processing operation includes brine injection, then you owe it to yourself to take a look at the Promarksvac MSK Series. We think you will agree that they represent the best overall value to be found in the industry.

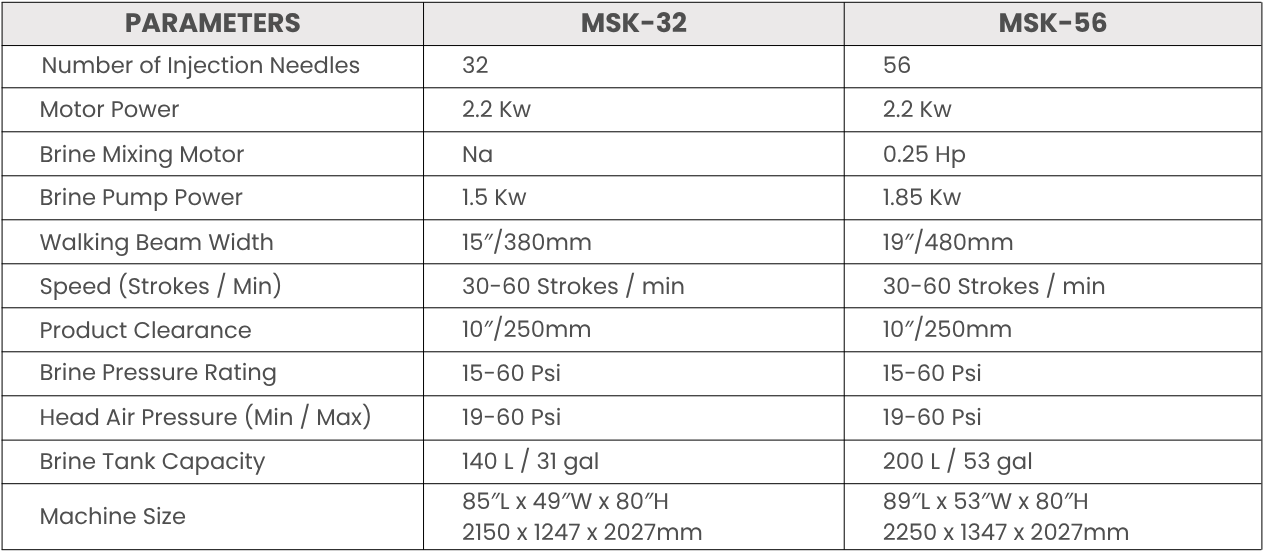

MSK-32
Number of Injection Needles32
Motor Power2.2kw
Brine Pump Power1.5kw
Walking Beam Width15" / 380mm
Speed (Stroke / Min)30 - 60 Strokes / Min
Product Clearance10" / 250mm
Brine Pressure Rating15 - 60 psi
Head Air Pressure (Min / Max)19 - 60 psi
Brine Tank Capacity31 gal / 140 liters

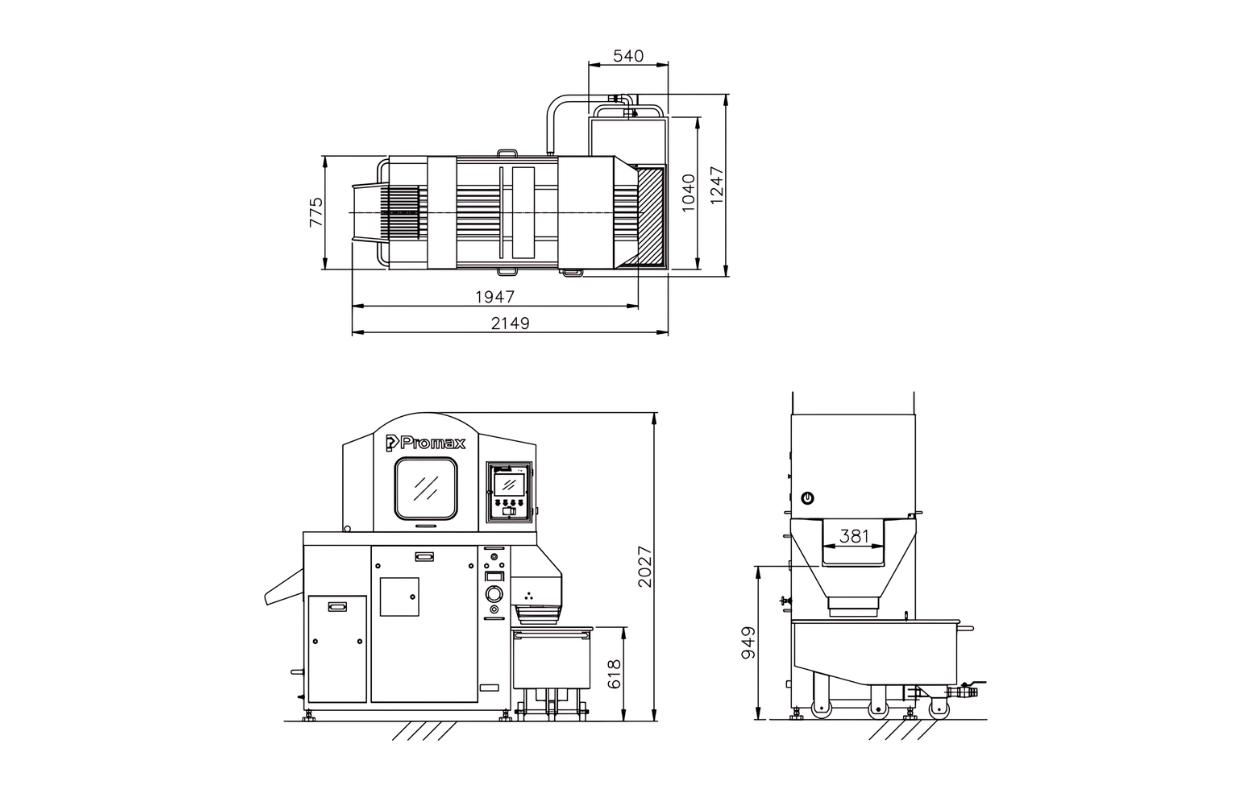

Machine Size - L x W X H85" x 49" x 80" (2150x1247x2027mm)
MSK-56
Number of Injection Needles56
Motor Power2.2kw
Brine Mixing Motor0.25 hp
Brine Pump Power1.85kw
Walking Beam Width19" / 480mm
Speed (Stroke / Min)30 - 60 Strokes / Min
Product Clearance10" / 250mm
Brine Pressure Rating15 - 60 psi
Head Air Pressure (Min / Max)19 - 60 psi
Brine Tank Capacity53 gal / 200 liters
Machine Size - L x W X H89" x 53" x 80" (2250x1347x2027mm)
