BRINE INJECTOR MSK-16

BRINE INJECTOR MSK-16

Standard Features:

  • Stainless Steel (# 304) Construction
  • Centrifugal Brine Pump
  • Spring Head Design for Needle Force
  • Simple Analog Controls
  • Easy to Remove & Clean Conveyor
  • Easy to Replace Needles
  • Stainless Steel (# 304) Brine Tank

Options:

  • Tenderizer Knife Set
  • Custom Voltage



contactus_button

  • Description

Description

Promarksvac Corporation manufactures a complete line of Brine Injectors from our value priced MSK-16 to our impressive MSK-198. All of these units feature all stainless steel housings and high quality European brine pumps.

The MSK-16 features simple to use analog controls and a composite conveyor belt for product movement. The needle force on this unit is supplied by a time tested spring system.

The MSK-32 through the MSK-56 offers an advanced PLC control system as well as a sturdy all stainless steel walking beam system for product movement through the unit. These units also feature an air pressure controlled needle head system. This system allows for processing both boneless as well as bone in product with a simple adjustment in the air pressure settings instead of changing out head springs. These units also feature unique air powered needle cleaning fixture.

The MSK-98 and the MSK-198 boast a robust hydraulic power system that handles both needle head movement as well as driving the product feed conveyor. These units share the same advanced PLC control system and needle cleaning fixture as the MSK-32 and MSK-56

If your processing operation includes brine injection, then you owe it to yourself to take a look at the Promarksvac MSK Series. We think you will agree that they represent the best overall value to be found in the industry.

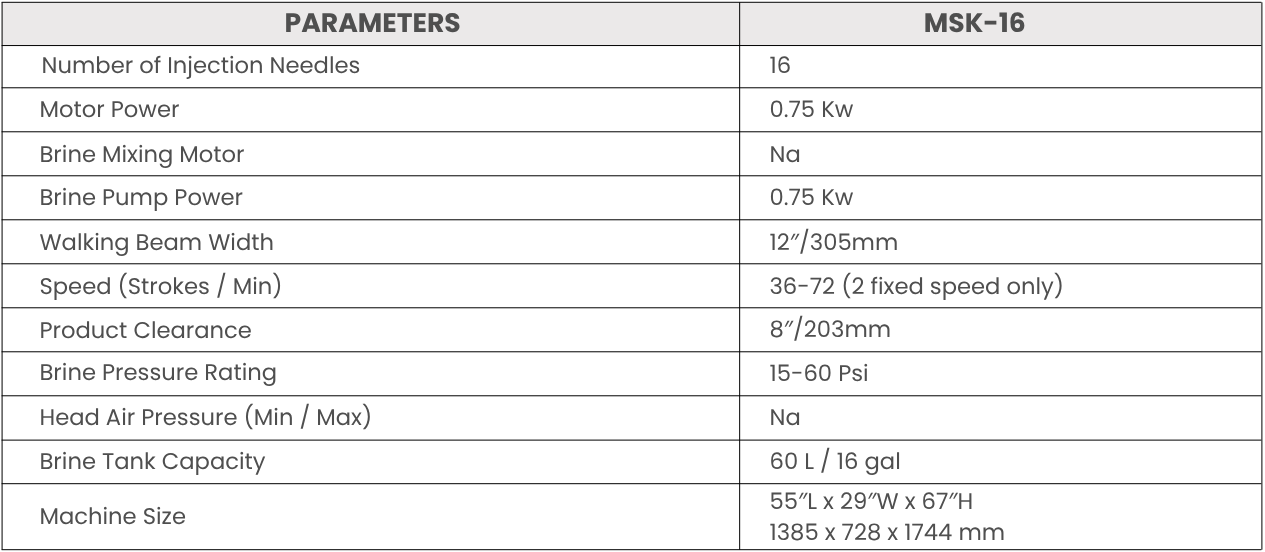

Specification:
Number of Injection Needles16
Motor Power0.75kw
Brine Pump Power0.75kw
Belt Width12" / 305mm
Speed (Stroke / Min)32 - 72 (2 fixed speed only)
Product Clearance8" / 203mm
Brine Pressure Rating15 - 60 psi
Brine Tank Capacity16 gal / 60 liters
Machine Size - L x W X H55" x 29" x 67" (1385x728x1744mm)
