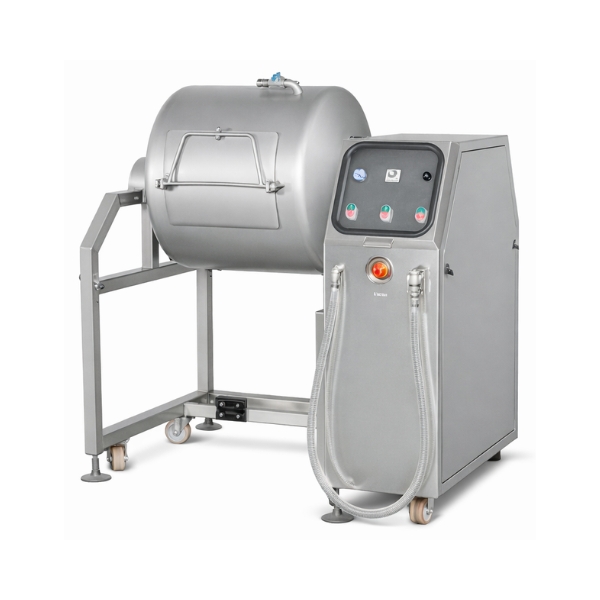

MODEL TMC150-1000 NON-CONTINUOUS VACUUM TUMBLING MACHINE

MODEL TMC150-1000 NON-CONTINUOUS VACUUM TUMBLING MACHINE

Standard Features:

  • All 304 Stainless Steel Construction
  • In place sensor for the vacuum hose will not allow the drum to turn with the vacuum hose connected
  • Analog Vacuum Gauge
  • Analog timer for mixing time
  • Frequency motor drive for precise control of mixing speed
  • Busch vacuum pump

Options:

  • Custom voltage



contactus_button

  • Description

Description

Promarksvac TMC Series vacuum tumblers are high quality, all stainless steel (# 304 food grade) machines that utilize non continuous vacuum operation. Operation is simple. Once the unit is loaded with product, an external vacuum hose is connected to a vacuum port on the outside of the drum and once connected the vacuum pump is switched on allowing the drum to be evacuated. Once the desired vacuum level is reached, the valve on the vacuum port is closed, the pump is turned off, and the vacuum hose is stored back in place. Then, the mixing switch is tuned on and the drum will now turn for the amount of time set on the analog timer. These machines present any processor with a robust and economical solution to their vacuum marinating needs.

Specification:

TMC-150:
Capacity154 lbs./ 70 kg
Vacuum Pump Capacity20m3/h (0.9kw)
Voltage110V/1PH/60HZ/19.54A
Machine Weight622 lbs. / 282 kg
Machine Size - L x W x H48" x 37" x 55" (1215 x 940 x 1385 mm)
TMC-300:
Capacity308 lbs./ 140 kg
Vacuum Pump Capacity20m3/h (0.9kw)
Voltage110V/1PH/60HZ/19.54A
Machine Weight661 lbs. / 300 kg
Machine Size - L x W x H55" x 37" x 60" (1392x940x1520mm)
TMC-500:
Capacity660 lbs./ 300 kg
Vacuum Pump Capacity20m3/h (0.9kw)
Voltage110V/1PH/60HZ/19.54A
Machine Weight794 lbs. / 360 kg
Machine Size - L x W x H55" x 37" x 63" (1392x940x1610mm)
TMC-1000:
Capacity1000 lbs./ 454 kg
Vacuum Pump Capacity20m3/h (0.9kw)
Voltage220V/3PH/60HZ/14.8A
Machine Weight1616 lbs. / 733 kg
Machine Size - L x W x H74" x 37" x 63" (1890x940x1610mm)
