MODEL TM150T-TM1000T VACUUM TUMBLING MACHINE

MODEL TM150T-TM1000T VACUUM TUMBLING MACHINE

Standard Features:

  • Stainless Steel Construction
  • Busch vacuum pump
  • Variable Speed
  • Continuous Vacuum
  • Reverse Discharge Function

Options:

  • Auto Drain System for Water Trap
  • Custom Vanes Inside the Drum
  • Larger Vacuum Pumps
  • Custom Voltage



contactus_button

  • Description

Description



Promarks’ TM Series continuous style vacuum tumblers utilize a vacuum system that allows vacuum to be drawn, vented and re-drawn all while the drum is in motion. This system and our PV-03 microprocessor control panel allows the TM Series to provide greater pick up due to the “sponge “effect caused by this system.  This type of system has been the standard of the industry in Europe for many years because of its overall advantage compared to non-continuous vacuum systems. Another advantage to the PV-03 control system is the “set it and forget it” capability when your operation calls for multiple vacuum, vent and mixing cycles as the desired sequence can all be programmed into the PV-03 then the machine is automatic after the cycle is begun. All this makes the TM Series the machines to have when you are ready to take your vacuum marinating operation to the next level.

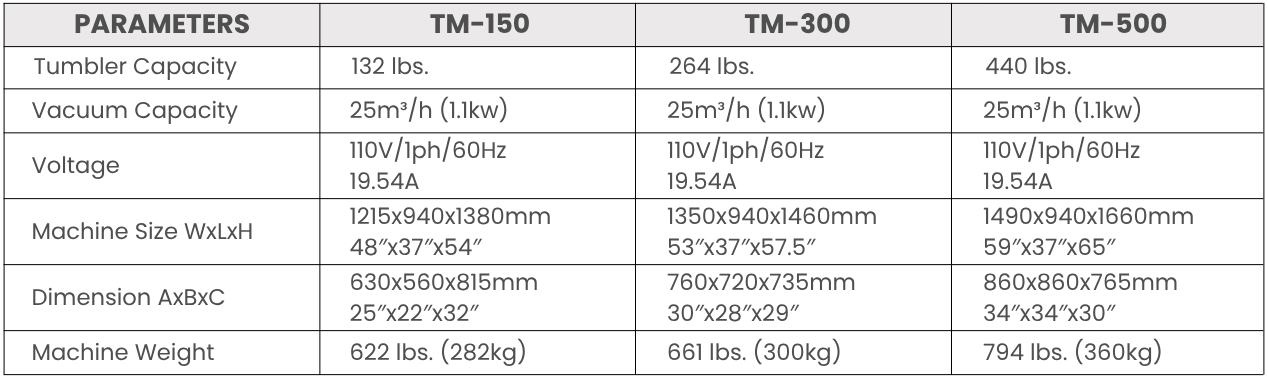

Specification:

TM-150T:

Capacity154 lbs./ 70 kg
Vacuum Pump Capacity20m3/h (0.9kw)
Voltage110V/1PH/60HZ/19.54A
Machine Weight622 lbs. / 282 kg
Machine Size - L x W x H48" x 37" x 55" (1215 x 940 x 1385 mm)

TM-300T:

Capacity308 lbs./ 140 kg
Vacuum Pump Capacity20m3/h (0.9kw)
Voltage110V/1PH/60HZ/19.54A
Machine Weight661 lbs. / 300 kg
Machine Size - L x W x H53" x 37" x 57.5" (1345 x 940 x 1460 mm)

TM-500T:

Capacity660 lbs./ 300 kg
Vacuum Pump Capacity20m3/h (0.9kw)
Voltage110V/1PH/60HZ/19.54A
Machine Weight794 lbs. / 360 kg
Machine Size - L x W x H57" x 37" x 63" (1450 x 940 x 1610 mm)

TM-1000T:

Capacity1000 lbs./ 454 kg
Vacuum Pump Capacity20m3/h (0.9kw)
Voltage220V/3PH/60HZ/14.8A
Machine Weight1616 lbs. / 733 kg
Machine Size - L x W x H81" x 68" x 70" (2065 x 1730 x 1790 mm)
